In the vast realm of geometry, 2D shapes stand as fundamental entities, defining the building blocks of spatial understanding. These flat, two-dimensional figures play a pivotal role in mathematical concepts and have real-world applications, from architecture to art. In this comprehensive exploration, we delve into the characteristics, classifications, and properties of various 2D shapes, shedding light on their significance in both theoretical and practical contexts.
What is 2D shapes?
The essence of 2D shapes lies in their simplicity and flatness. These shapes exist in two dimensions—length and width—without any measurable depth. The boundaries or outlines of these figures are easily distinguishable, making them foundational elements in plane geometry.
2D Shapes Name

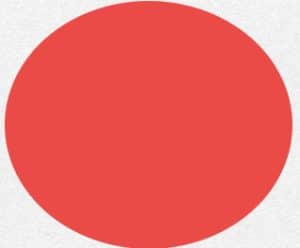

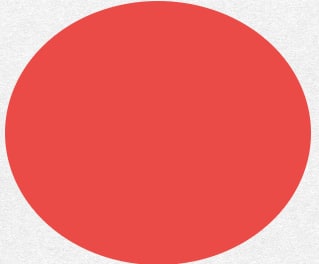

1. Circle
- A set of all points equidistant from a central point, forming a perfectly round shape.
- Circles have a constant radius, diameter, and circumference, with any chord passing through the center being a diameter.
2. Square
- A special type of rectangle with all sides of equal length and all angles measuring 90 degrees.
- Squares possess symmetry, and each diagonal bisects the opposite angle.

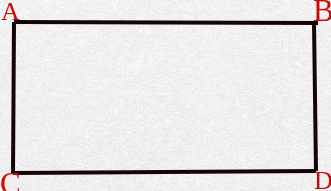

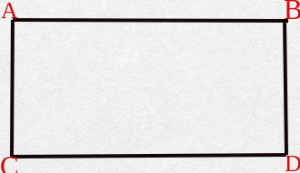

3.Rectangle
- A quadrilateral with four right angles, where opposite sides are equal in length and parallel.
- Rectangles exhibit symmetry, and their diagonals are of equal length.
4. Triangle
- A polygon with three sides and three angles.
- Triangles vary in types, such as equilateral, isosceles, and scalene, based on side and angle measurements.
5.Pentagon
A pentagon, derived from Greek, is a polygon with five sides and angles. It exhibits symmetry, with equal sides and interior angles of 108 degrees in a regular form. Beyond geometry, it appears in architecture, art, and nature, showcasing both mathematical elegance and aesthetic appeal. The pentagon, a five-sided wonder, bridges the gap between precision and beauty in the world of shapes.
6.Octagon
An octagon is a polygon with eight sides and eight angles. Its structure is characterized by straight line segments connecting eight vertices, creating an enclosed figure.
2D Shapes Properties
| Shape | Properties | Description |
|---|---|---|
| Rectangle | Four right angles | A quadrilateral with opposite sides equal and parallel, having four right angles. |
| Opposite sides equal and parallel | ||
| Square | Four equal sides and angles | A special type of rectangle where all sides are equal, forming four right angles. |
| Triangle | Three sides and angles | A polygon with three sides and three angles, varying in types such as equilateral, isosceles, and scalene. |
| Circle | Constant radius, diameter, and circumference | A perfectly round shape defined by a set of points equidistant from a central point. |
| Parallelogram | Opposite sides equal and parallel | A four-sided figure with opposite sides parallel and equal in length. |
| Trapezoid | One pair of parallel sides | A quadrilateral with one pair of parallel sides and the other two sides not parallel. |
| Pentagon | Five sides and angles | A polygon with five sides and five angles, contributing to various geometric patterns. |
| Octagon | Eight sides and angles | An eight-sided polygon with eight equal or unequal sides, adding complexity to geometric designs. |
Area and Perimeter of 2D Shapes
| Shape | Area Formula | Perimeter (or Circumference) Formula |
|---|---|---|
| Rectangle | A = length × width | P = 2 × (length + width) |
| Square | A = side × side | P = 4 × side |
| Triangle | A = 0.5 × base × height | P = side1 + side2 + side3 |
| Circle | A = π × radius² | C = 2 × π × radius |
| Parallelogram | A = base × height | P = 2 × (base + side) |
| Trapezoid | A = 0.5 × (sum of bases) × height | P = side1 + side2 + base1 + base2 |
2D Shapes Examples
Example1:Consider a rectangle with a length of 10 units and a width of 6 units.
Solution:
Area (A) = length × width = 10 × 6 = 60 square units
Perimeter (P) = 2 × (length + width) = 2 × (10 + 6) = 32 units.
Example2: Imagine a square with each side measuring 4 units.
Solution:
Area (A) = side × side = 4 × 4 = 16 square units
Perimeter (P) = 4 × side = 4 × 4 = 16 units
Example3: Take an isosceles triangle with a base of 8 units and a height of 6 units.
Solution:
Area (A) = 0.5 × base × height = 0.5 × 8 × 6 = 24 square units
Perimeter (P) = sum of sides = side1 + side2 + base = 8 + 8 + 6 = 22 units
Example4: Take a parallelogram with a base of 12 units and a height of 8 units.
Solution:
Area (A) = base × height = 12 × 8 = 96 square units
Perimeter (P) = 2 × (base + side) = 2 × (12 + 8) = 40 units
Example 5:Imagine a trapezoid with a shorter base of 6 units, a longer base of 10 units, and a height of 4 units.
Solution:
Area (A) = 0.5 × (sum of bases) × height = 0.5 × (6 + 10) × 4 = 32 square units
Perimeter (P) = sum of sides = side1 + side2 + base1 + base2 = 6 + 8 + 10 + 8 = 32 units
